OKM Gold Labor AU 79
Find Best Conditions For Gold Panning
-
Best Price Guarantee
-
Worldwide Free Shipping
-
2 Year Manufacturer Warranty
-
Made in Germany
Features
- Supportive: Tool for gold seekers, prospectors and miners to determine the gold content of placers, minerals and soil samples in general. Using this gold detector helps prospectors to find reasonable places for gold panning and gold mining.
- Operating Modes: Mineral Scan.
- Detectable Objects: Gold flitters, gold nuggets, natural gold minerals.

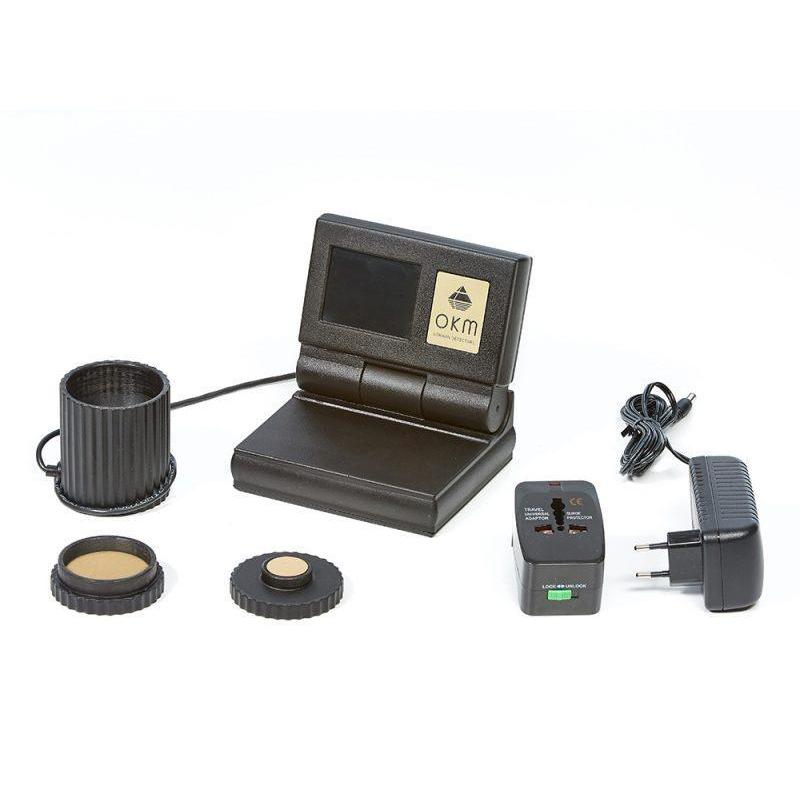

Package Includes
- User's Manual
- Control Unit
- Charger For Control Unit
- Measuring Cup
- Travel Adapter
- Shipping Carton
Gold Labor Au 79 is a supportive tool for all gold seekers, prospectors and miners to determine the gold content of placers and minerals as well as soil samples in general. Using this gold detector helps prospectors to find reasonable places for gold panning or gold mining.
The Gold Labor Au 79 gives you information about the gold content of your soil sample in grams per ton. The higher this value, the more gold is available in the underground soil.
Determine The Gold Content Of The Soil By Samles

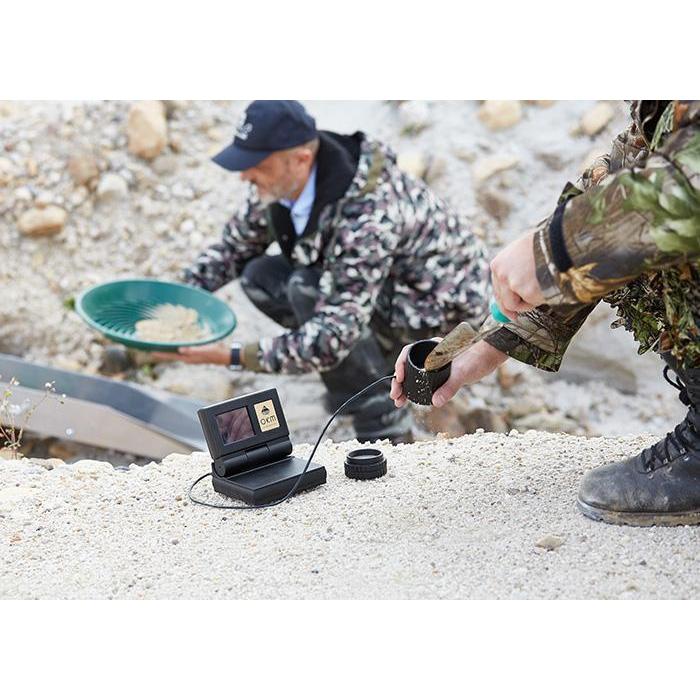

Fill a soil sample into the measuring cup of the Gold Labor Au 79, start the measurement and get the gold content of the soil. Repeat this with several samples to know if it is worth to start the gold panning process.
Step-By-Step Instructions
The gold detector helps you in finding reasonable places for gold panning or even gold mining. During the measurement of the Gold Labor Au 79 the following steps will be processed:
-
Power on your Gold Labor Au 79. If the measuring cup has not been cleaned yet after a previous measurement, you have to clean it first. Any gold particle that sticks in the measuring cup will distort the gold measurement.
-
Place your soil sample into the measuring cup and remove included ferromagnetic materials (e.g. black sand). Therefor one of the covers for the measuring cup has an embedded magnet to get hold of the magnetic particles that are included in your soil sample.
-
The final step determines the gold content of the sample while shaking the measuring cup several times. The electrolysis-free segmented two-core spiral coil of the measuring cup recognizes the bypassing gold particles and calculates the final gold content.
Easy To Use With Color Display
All steps are visually represented on the color display of the control unit. Thus, you will be guided step by step through the whole measuring procedure. The built-in battery lasts for approx. 5 hours which corresponds to approx. 600 measurements. The handling of this gold detector is very easy.
Find Best Conditions For Gold Panning
If a reasonable place with enough gold content has been detected, the experienced gold seeker, prospector or miner can get ready for the gold panning process to get the gold out of the ground.

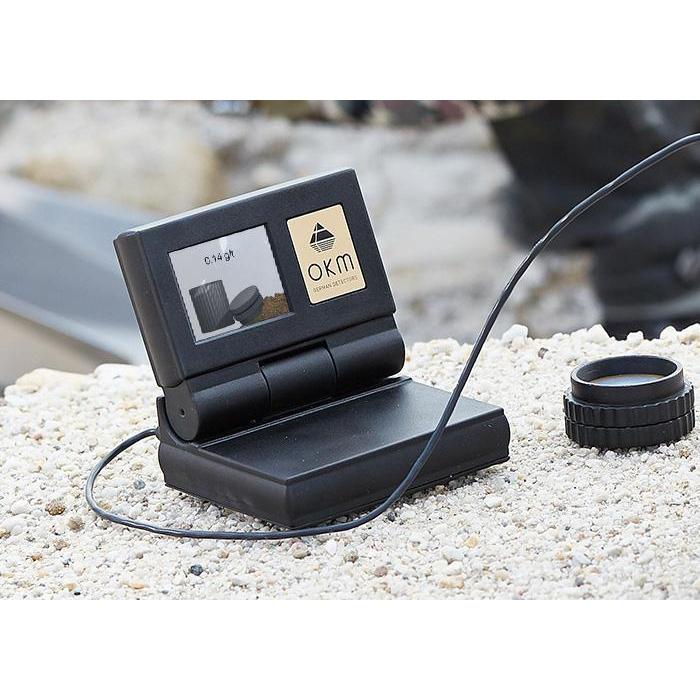

Control Unit
- Dimensions (H x W x D): 135 x 120 x 55 mm / Ø 65 x 90 mm.
- Weight: 660 g / 230 g (Main unit / Measuring cup).
- Processor / Main CPU: Atmega2560, 8-bit, 16 MHz.
- Display: 2.8" TFT, Touchscreen, Colour.
- Operating Temperature: 5°C – 40°C.
- Storage Temperature: –20°C – 60°C.
- Waterproof: No (Measuring cup Yes).
- Voltage: 7.2 V DC (internal battery).
- Operating Time: Approx. 5 h (corresponds to approx. 600 measurements).
- Air Humidity: 5% – 95%.
- Charging Time: Approx. 3 h.
- Measuring Unit: Electrolysis-free segmented two-core spiral-coil.
