Metal Detection and 3D Ground Scanner

• Best Price Guarantee

• Worldwide Free Shipping

• 2 Year Manufacturer Warranty

• Made in Germany

Features

• Compact: Detector for vertical and horizontal orientation - supporting graphical 3D measurements, acoustic magnetic field measurements and instant live images
• Depth: Customers found treasures up to 12-15 meters deep
• Use Cases: Treasure hunting, cavity detection
• Operating Modes: Ground Scan, Live Sound (Magnetometer), Live Stream
• Detectable Objects: Treasure chests, cavities, tunnels

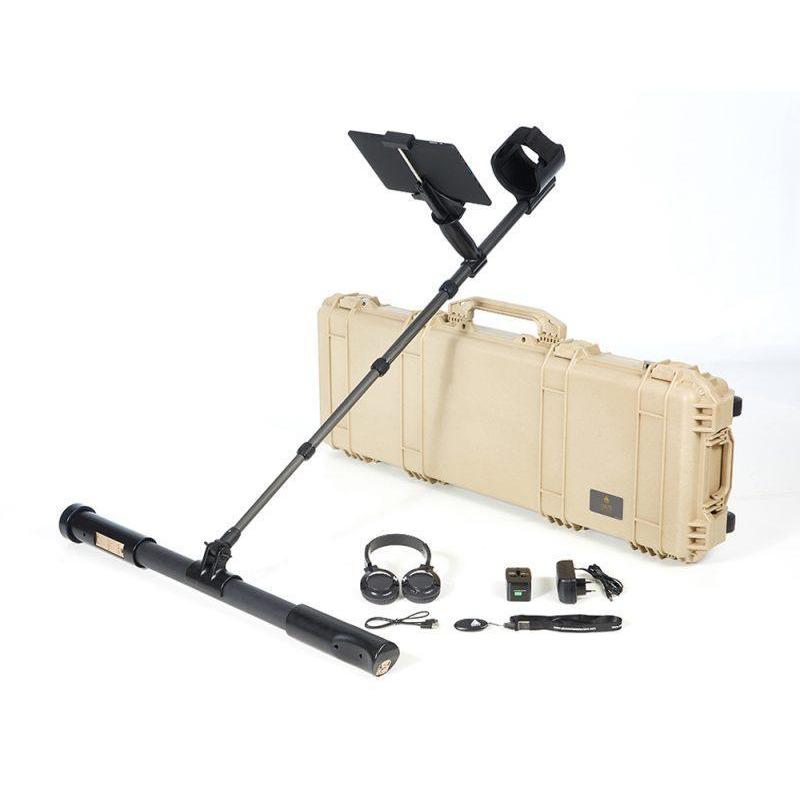

Package Includes

• User's manual

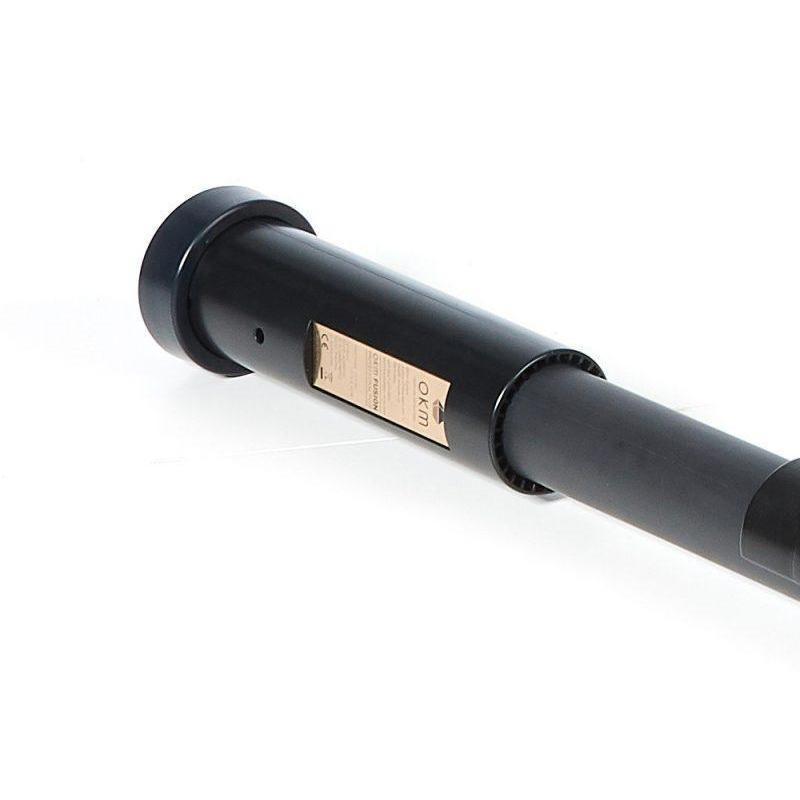

• Control unit
• 3D Software ("Visualizer 3D")
• USB bluetooth dongle
• Waterproof and shock resistant Pelican case
• Windows Tablet PC

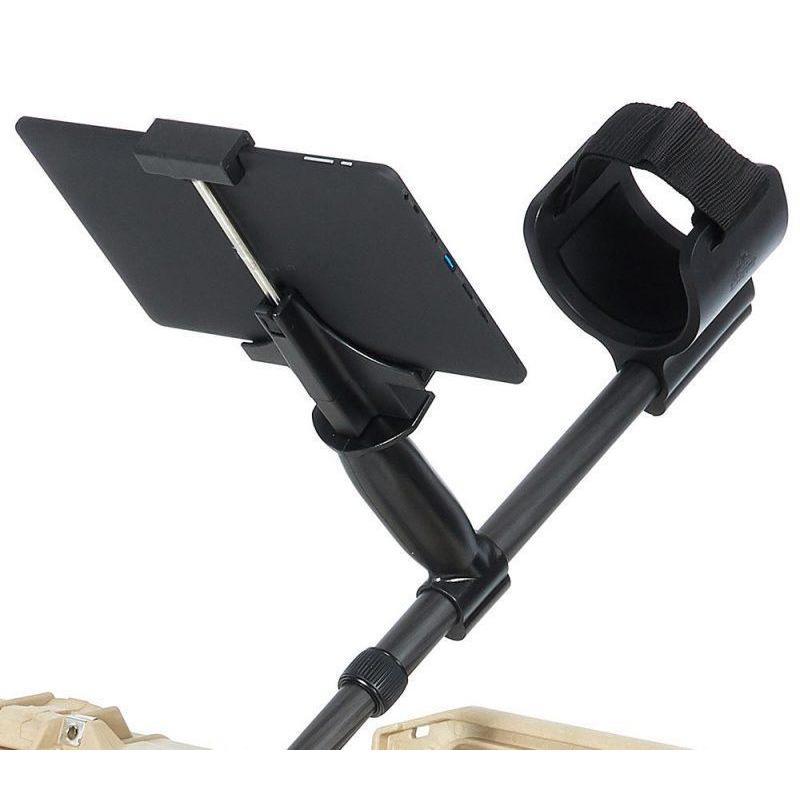

• Tablet PC mount
• Telescopic rod assembly

OKM Fusion Variants

• OKM Fusion Light - Click Here
• OKM Fusion Professional - Click Here
• OKM Fusion Professional Plus - Click Here

The metal detector and 3D ground scanner Fusion supports treasure hunters, gold seekers, adventurers and archaeologists to discover lost treasures, buried artifacts, hidden places and other historical items.

The advanced version Professional Plus can be used in vertical and horizontal orientation and supports graphical 3D measurements, acoustic magnetic field measurements and instant live images.

The version Fusion Professional Plus is perfect for advanced users who need more operating features.

Operating The OKM Fusion Metal Detector

The advanced professional plus version can be used in vertical and horizontal orientation and supports following operating modes:

Utilizing The SRIS Search Coil To Locate Shallow Metals

One of the new detection features is the SRIS search coil that can be used to locate short range metallic objects. This coil can be activated individually by the operator while setting up the operating modes Live Sound, Ground Scan and Live Scan (Ultrasound).

When you start digging it can be really hard to exactly match the correct spots of hidden items afterwards. By checking the excavated material with activated SRIS search coil you won’t miss any small object like:

• wedding bands and engagement rings
• ear rings, brooches, bracelets and necklace
• coins, buttons, badges and pins

3D Visualization Of Underground Treasures

While scanning an unknown area and recording the measure values, the Visualizer 3D Software can immediately analyze and visualize this information to display a color-coded 3d graphic of hidden objects and structures. Thus you will literally “see” all buried treasures, gold objects, archaeological artifacts and any other hidden objects before digging.

Additionally you can determine the size, position and depth of your detected items. So you know where to dig and how deep to dig to find your objects of interest.

3D Ground Scan: With a 3d ground scan you will conduct a complete measurement and scan a specific area to see buried objects.

Live Scan (Ultrasound): In this special view of the Live Scan operating mode you are able to see a symbolized ultrasound image of hidden objects.

The OKM Fusion metal detector and 3D ground scanner is available in two versions: Professional (without telescopic rod assembly) and Professional Plus (all accessories and complete functionality).

Computer Minimum Requirements

• CD-ROM drive: minimum 4x
• Interface (Data transmission): USB
• Free disk space: minimum 50 MB
• Working memory (RAM): minimum 256 MB
• Graphic card: minimum 128 MB, OpenGL-compatible
• Operating system: Windows Vista, Windows 7, Windows 8, Windows 10

Data Transmission

• Technology: Bluetooth
• Frequency: 2.4 – 2.4835 GHz
• Maximum Transfer Rate: 1 Mbps
• Receiving Sensitivity: –85 dBm
• Maximum Range: approx. 10 m

Control Unit

• Dimensions (H x W x D): 950 mm, 65 / 80 mm
• Weight: approx. 1 kg
• Processor / Main CPU: Cortex M3, 32 MHz
• Processor / Slave CPU: Cortex M0, 24 MHz
• Sample rate: 1024 values / second
• Measurement resolution: 16 bit
• Operating temperature: –10°C – 60°C
• Storage temperature: –20°C – 70°C

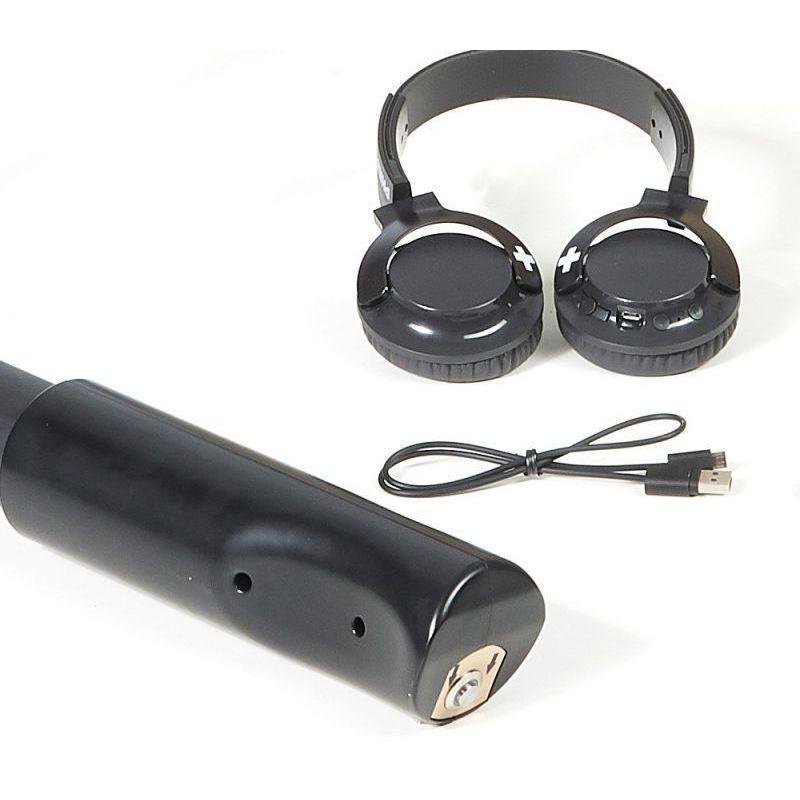

• Audio: Bluetooth Headphones
• Waterproof: No
• Sensor technology / Coil technology: SCMI-15-D / SRIS-18K
• Operating time: approx. 3 hours (delivered power supply, full charged battery, 25°C)
• Air humidity: 5% – 75%
• Protection Type: IP40
• Input (for Charger): 19 V DC / 3.16 A
